When sourcing extension cords for commercial distribution or industrial procurement, you will frequently encounter two standard options: 14 AWG and 16 AWG. While they appear physically similar, their price points, structural capabilities, and safety thresholds differ significantly.
Understanding "Gauge" (wire size) is critical. Selecting the wrong specification can result in voltage drops, appliance damage, or catastrophic electrical fires. This guide delivers a technical comparison to help you source the correct specification for your operational needs.
In the electrical wire industry, the American Wire Gauge (AWG) system operates inversely: a smaller gauge number designates a thicker copper conductor. Therefore, a 14-gauge cord features a thicker copper core than a 16-gauge cord. In commercial sectors, it is classified as a Medium to Heavy-Duty Cord.
Rated Current: 15 Amps
Maximum Power (at 125V standard): 1875 Watts
Thicker copper conductors offer lower electrical resistance, minimizing heat generation and power dissipation. This configuration allows the safe transmission of higher currents, making it ideal for high-power household appliances and light industrial power tools.

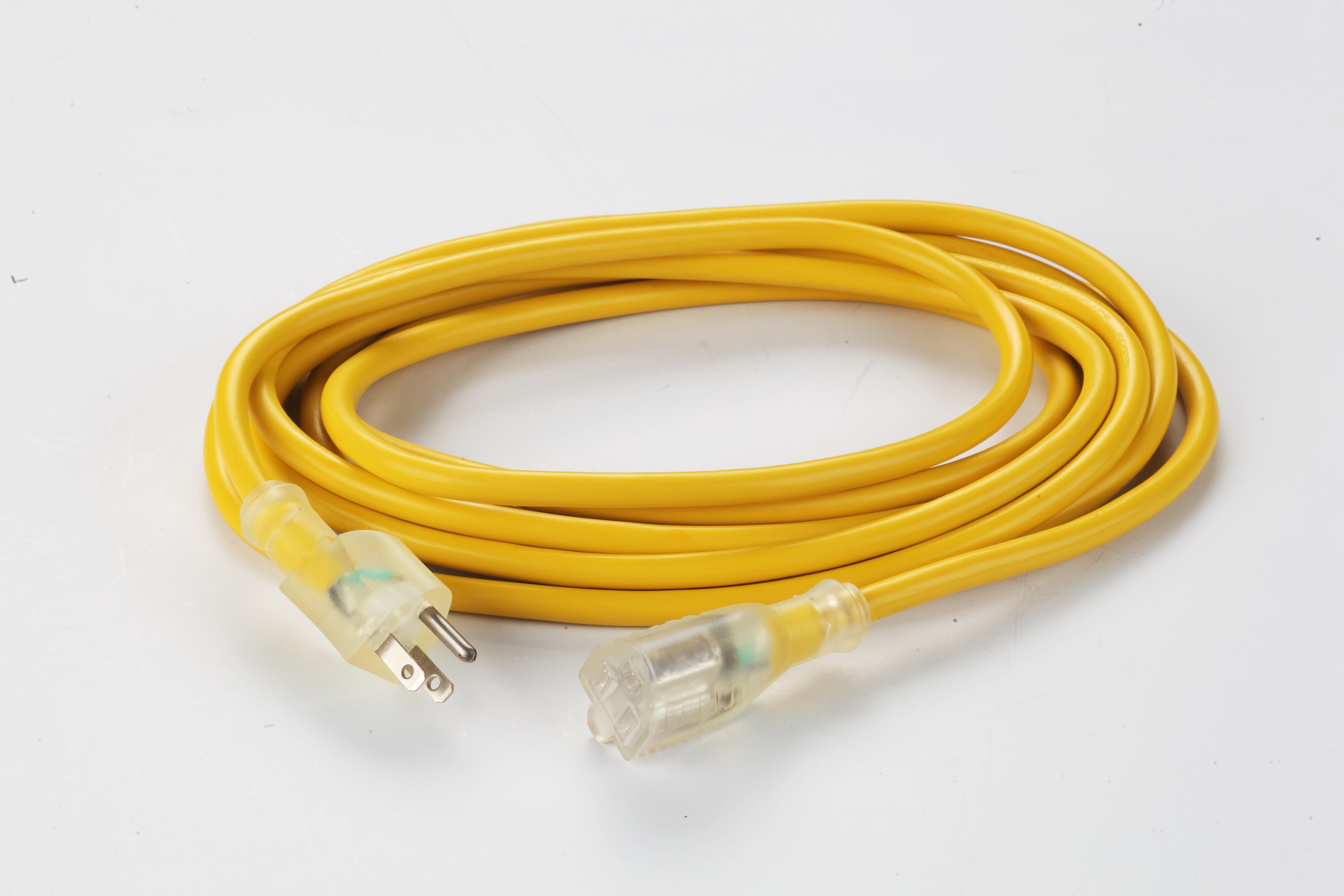

US Outdoor 3-Outlets 14AWG Power Extension Cord
A 16-gauge extension cord utilizes a thinner copper conductor core. In the flow supply chain, this specification is designated as a Light-Duty Cord.
Rated Current: 13 Amps
Maximum Power (at 125V standard): 1625 Watts
Because of the smaller copper mass, 16 AWG cords are lightweight, highly flexible, easy to coil, and cost-effective. They are designed for temporary power extension for everyday low-power consumer devices.

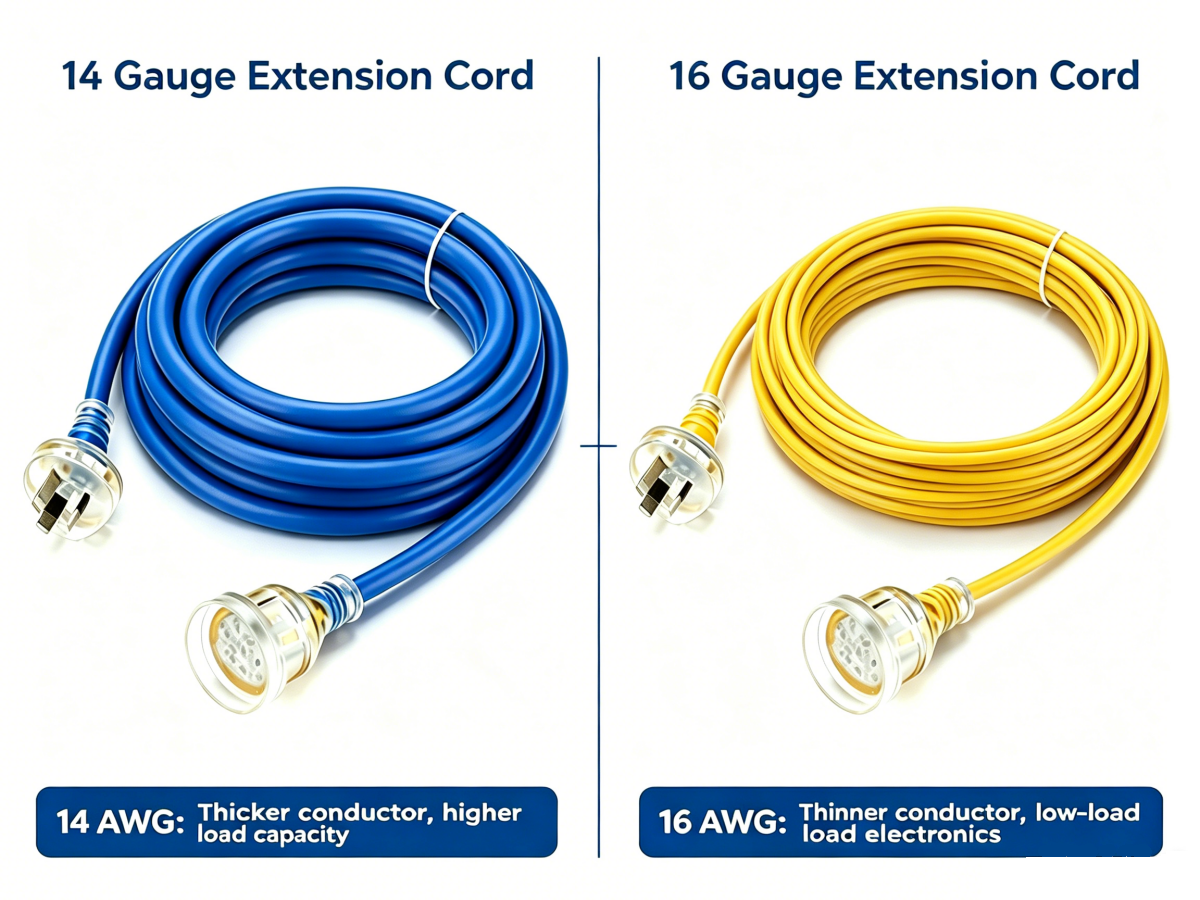

Technical Dimension | 14 Gauge Extension Cord | 16 Gauge Extension Cord |
Conductor Thickness | Thicker copper core | Thinner copper core |
Industry Classification | Medium / Heavy-Duty | Light-Duty |
Maximum Current | 15A | 13A |
Maximum Power Limit | 1875W | 1625W |
Cost & Price Point | Higher copper content; premium pricing | Less copper; highly cost-competitive |
Long-Distance Performance | Maintains stable voltage beyond 50 feet | Capacity drops sharply past 50 feet |
16 AWG cords are engineered strictly for low-load electronics.
Indoor Utilities: Smartphones, laptops, LED holiday string lights, desk lamps, household fans, and digital clocks.
Yard Maintenance: Ultra-light electric hedge trimmers (provided the total draw is well under 12 Amps).
Prohibited Connections: Space heaters, microwaves, refrigerators, and commercial lawnmowers.
14 AWG cords handle higher continuous loads and inductive motor startup currents.
Appliances & Kitchens: Refrigerators, microwaves, portable air conditioners, and oil-filled space heaters.
Commercial & DIY Tools: Handheld drills, circular saws, high-pressure washers, industrial vacuums, and small portable inverter generators.
Check the exact Ampere (A) or Wattage (W) rating on the equipment label.
If the appliance draws less than 12A and runs a resistive load, a 16-gauge cord is a cost-effective choice.
If the load approaches or exceeds 13A, or includes a compressor/motor (which generates high startup inrush currents), a 14-gauge cord is mandatory.
Under 50 Feet (~15 Meters): You can source cords strictly matching the rated power load of the appliance.
50 to 100 Feet (~30 Meters): Long distances trigger a Voltage Drop due to increased resistance. Even for moderate power loads, you must upscale to a 14 AWG (or thicker) cord to ensure stable voltage delivery and prevent motor burnout.
Industrial outdoor environments require rugged insulation. 14 AWG cords typically come equipped with thicker, weather-resistant jackets (such as SJTW) that withstand UV exposure, moisture, and abrasion, unlike light-duty indoor 16 AWG lines.
Electrical safety leaves no room for compromise. If your procurement data lacks the precise power parameters of the target equipment, opting for a 14 AWG cord is the safest decision to eliminate operational risks.
As an ISO 9001:2015 certified manufacturer, A-Line Cable enforces strict quality control to eliminate undersized conductors and sub-standard insulation. Our 14 AWG and 16 AWG extension cords are manufactured using high-purity, oxygen-free copper cores encased in heavy-duty jacketing compliant with RoHS and REACH directives.
To streamline your global market entry, our product lines carry elite international safety certifications, including UL, VDE, SAA, CCC, RCM, ASTA, TUV, and CE. Whether you require bulk standard wholesale distribution or customized wire harnesses with specialized plugs and custom lengths, A-Line Cable delivers dependable engineering.
