Choosing the wrong extension cord in commercial and industrial settings is more than an inconvenience—it risks equipment damage, costly downtime, and even serious fire hazards caused by voltage drop and overheating.
For distributors and procurement managers, understanding the relationship between wire gauge (AWG) and amps is the foundation of safe, code-compliant project planning.
An extension cord's wire gauge (AWG) directly determines its safe ampacity.
Smaller AWG numbers mean thicker wires with higher current-carrying capacity.
Larger numbers mean thinner wires with lower capacity.
Always follow the 80% Rule: Never exceed 80% of the extension cord's rated capacity for continuous use, to prevent overheating.
You can quickly find the wire gauge you need using the table below：
AWG Gauge | Recommended Safe Amperage (80% Rule) | Typical Applications |
18 AWG | 5A | Light-duty appliances, small tools, low-power devices |
16 AWG | 8A | Office equipment, small power tools |
14 AWG | 12A | Medium-duty tools, lighting circuits |
12 AWG | 16A | Industrial equipment, high-power tools, heaters |
10 AWG | 24A | Heavy machinery, large motors, high-load applications |

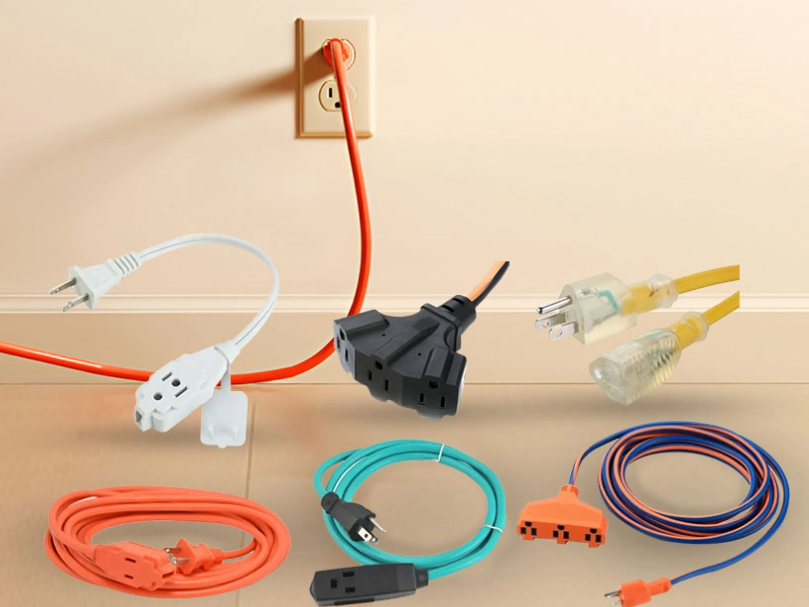

When you plug an appliance into an extension cord, you aren't just extending the reach of your wall outlet; you are essentially adding a long, narrow "pipe" to your electrical system. The physical properties of that pipe—specifically its length and thickness—determine how much energy actually reaches your device.
At this length, voltage drop is generally negligible for most household tasks. Standard gauge cords (like 16 AWG) can handle light loads efficiently. Because the path is short, there is very little opportunity for resistance to build up significant heat.
Once you reach 50 feet, the resistance becomes high enough to impact high-draw appliances like space heaters or circular saws. If your equipment pulls more than 10 Amps, you may notice a slight dip in performance. At this distance, it is often safer to move from a standard 16-gauge cord to a thicker 14-gauge cord.
At 100 feet, the voltage drop is significant enough to be detrimental. Starving a motor of its required voltage causes it to work harder and run hotter, which can permanently shorten the lifespan of your tools. Using a thin cord at this length with a heavy load is a fire hazard, as the cord itself may become hot enough to melt its insulation.

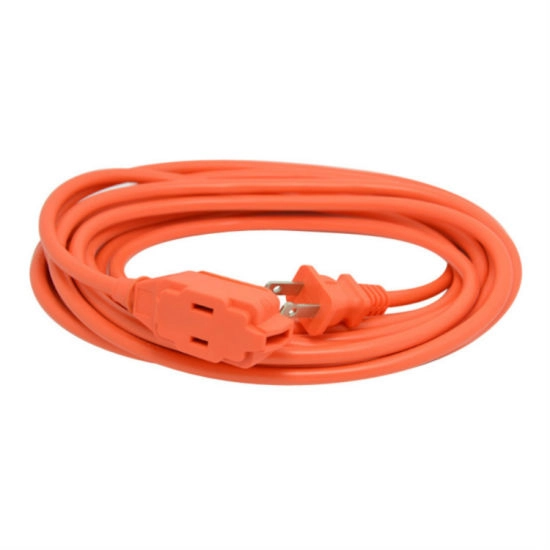

18 AWG 8FT America Type Extension Cord
Typically 16–18 AWG (5-10A), designed for low-power, occasional use, such as: office equipment, small household tools. These devices typically draw between 5 and 10 amps of current. Not suitable for continuous industrial use and incapable of enduring high-power loads or the abrasive conditions typical of complex work environments.

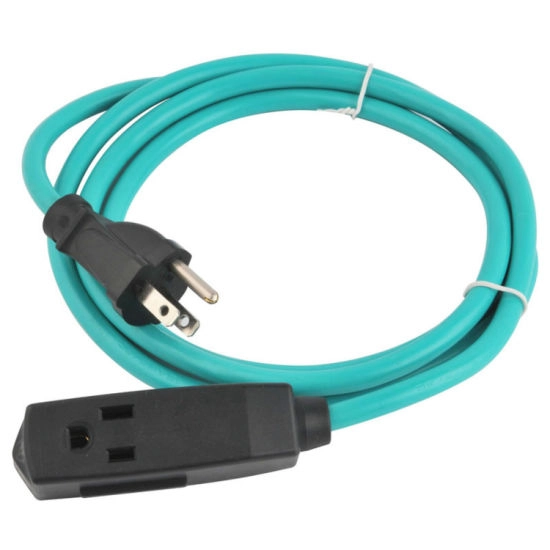

14 AWG 10FT US 3 outlets Extension Cord
Usually 14 AWG (12A), which is suitable for devices that draw between 10 and 15 amps of current, such as large kitchen appliances, power tools, and portable heaters. This type of extension cord can withstand a certain degree of pulling and abrasion.

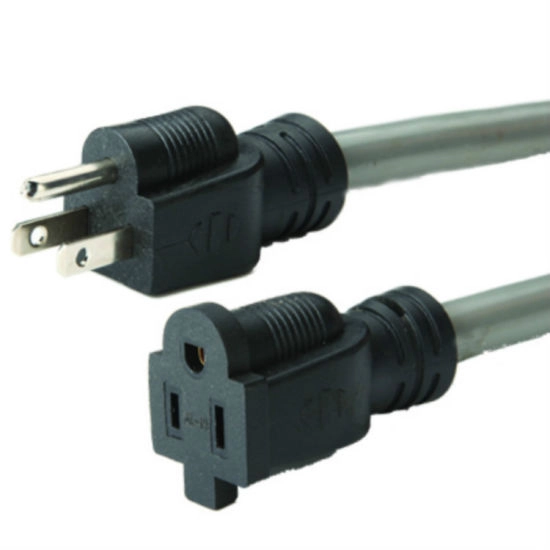

10 AWG Heavy-duty Extension Cord
10–12 AWG (16-24A) cords built for high-power, continuous use in harsh environments. Reinforced plugs, thick jackets, and durable construction withstand frequent pulling, abrasion, and extreme temperatures. The top choice for factories, construction sites, and outdoor worksites.
For commercial buyers, price is only one factor—compliance, durability, and inventory management are equally critical.
Look for extension cords certified to SAA standards. These certifications ensure compliance with safety regulations, which is non-negotiable for project approval and resale in North America. Uncertified cords risk rejected inspections and safety liabilities. A-Line Cable passed ISO 9001: 2015 Management system, most of its products have got SAA, VDE, CCC, etc. and are compliant with the RoHS, Reach directives.
Industrial extension cords must resist wear and extreme temperatures in harsh conditions. So, here are some key features to prioritize:
Reinforced plug strain relief to prevent breakage.
High-grade SEOPRENE rubber jackets that remain flexible from -40°F to 140°F, resisting cracking and brittleness.
Oil, chemical, and UV-resistant jackets for outdoor and factory environments.
For distributors, keeping track of cord specifications can be challenging. A-Line Cable offers custom solutions to streamline your operations:
Customize extension cords in different lengths to avoid the hassle of on-site cutting.
Color-coded cords to quickly identify gauge, length, or voltage ratings at a glance.
Custom brand printing with logos and specs for better traceability and customer recognition.

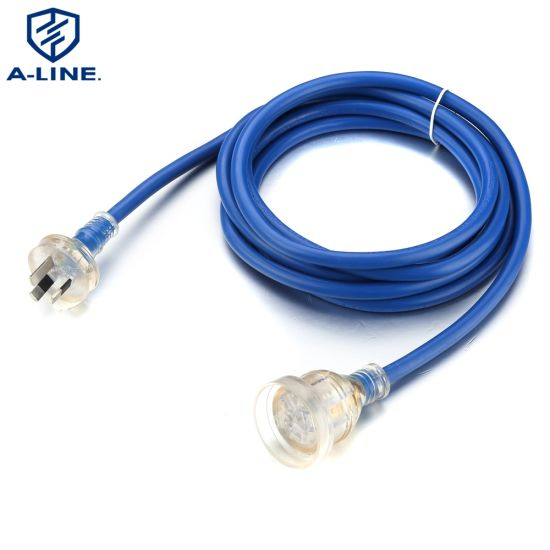

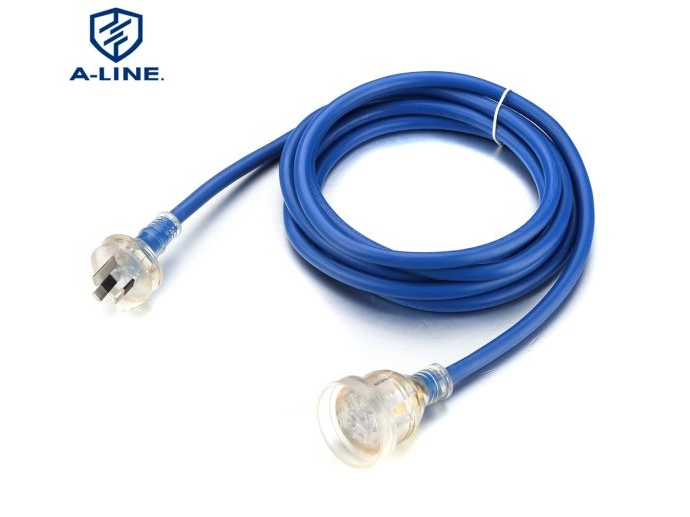

15m SAA Australian15A Heavy Duty Extension
Choosing the right extension cord is about far more than just matching plugs. For commercial and industrial projects, it's about protecting your equipment, your workers, and your bottom line through safe, compliant power distribution.
A-Line Cable specializes in industrial-grade extension cords designed for the rigors of commercial use. From certified safety compliance to custom inventory solutions, we help you build reliable power setups for every project.
