In modern data centers, power distribution is the backbone of system reliability. Every server, router, and storage device relies on a stable and well-organized electrical connection to function efficiently. Among the key components ensuring this reliability are data center power cords — often overlooked but absolutely vital. Choosing the right type of power cord directly affects uptime, safety, and energy efficiency.
This comprehensive guide will explain why data center power cords are so important, review the most common types, and offer practical tips on how to select the right one for your facility.
Electricity is the foundation of data center operations. Every rack, server, and storage unit depends on consistent power delivery. The power cord is the final link in the chain between the power source — such as a UPS or PDU — and your equipment. Even if you have redundant power feeds and advanced monitoring, poor cable selection can undermine system reliability.
Selecting the wrong power cord can cause more than minor inconveniences. Underrated power cords may overheat, leading to insulation failure or even fire hazards. Incorrect connectors can result in loose connections, power drops, or shutdowns. These failures can cascade, impacting server uptime and damaging valuable hardware.
High-quality data center power cables are designed to handle demanding electrical loads continuously. They feature robust insulation, durable connectors, and consistent conductor materials to minimize resistance and heat. Premium power cords not only improve efficiency but also enhance safety and longevity.
Data centers use a range of power cord types, depending on equipment design, voltage requirements, and geographical standards. The two main standards are IEC (International Electrotechnical Commission) and NEMA (National Electrical Manufacturers Association).
IEC power cords are the global standard for data centers. They are classified into several connector types:
C13 to C14: Common for low- to medium-power equipment such as servers and network switches (typically up to 10A).
C15 to C16: Designed for higher-temperature applications such as networking or telecom equipment.
C19 to C20: Used for high-power servers, storage units, or blade servers (up to 16A).
IEC power cords are standardized internationally, making them a common choice across Europe, Asia, and many global data centers.
NEMA connectors are widely used in North America. They differ from IEC connectors in shape and voltage configuration. Common types include:

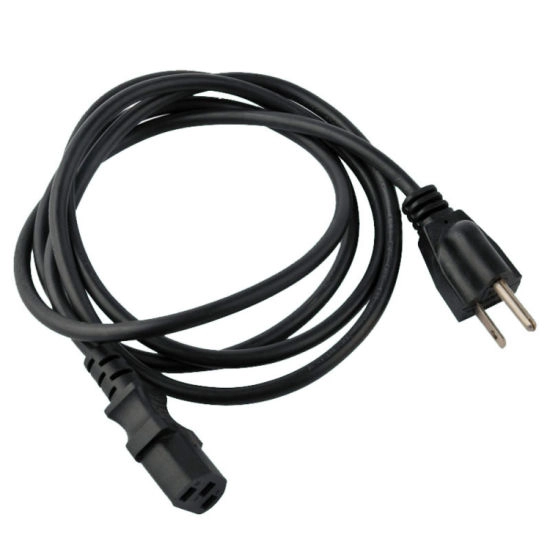

NEMA 5-15P to C13: For 125V standard applications.
NEMA L5-20P to C19: Locking plug for secure high-current 120V power.
NEMA L6-20P to C19: Commonly used for 208V high-power connections.
NEMA plugs often feature locking designs to prevent accidental disconnection, which is vital in high-density server environments.
Many data centers now prefer locking IEC or color-coded cords for better cable management. Locking connectors such as IEC-Lock prevent accidental unplugging, while colored jackets (red, blue, green, etc.) simplify circuit identification.
Selecting the right data center power cord involves balancing electrical, mechanical, and operational factors. The following considerations will help you make an informed decision.
The first step is to verify your equipment's rated power consumption. Check the specifications on the server, PDU, or UPS to determine its voltage and current draw.
For high-power devices such as blade servers or network storage systems, opt for C19–C20 or L6-20P power cords that support higher amperage (typically 16–20A).
For standard servers or switches, C13–C14 cords are usually sufficient.
Using undersized cables increases resistance and heat, reducing efficiency and potentially causing outages.
Voltage standards vary by region and data center design:
North America: Commonly uses NEMA connectors with 125V or 208V systems.
Europe and Asia: Typically use IEC connectors with 250V supply.
Always ensure the plug type and voltage rating are compatible with both your equipment and the local electrical infrastructure.
Wire gauge (AWG) directly affects current capacity and voltage drop.
12 AWG or 14 AWG power cords are recommended for high-power applications, as they minimize voltage loss and heat buildup.
Keep cable lengths as short as practical. Excessively long cords increase resistance and energy consumption. A good rule of thumb is to use the shortest possible cable that comfortably reaches the connection point.
Color coding is a simple yet powerful tool for cable management. Assigning different colors to various power feeds helps technicians quickly identify circuits and reduce errors.
Common practices include:
Red cables for primary power.
Blue cables for backup or secondary power.
Green or yellow cables for specific network zones.
Additionally, labeling both ends of the cord helps with maintenance and troubleshooting.
Always ensure your power cords comply with recognized safety certifications:
UL (Underwriters Laboratories) for North America.
CE (Conformité Européenne) for Europe.
RoHS compliance to ensure materials are environmentally safe.
Certified power cords guarantee performance consistency and reduce the risk of electrical failures.
In dense server racks, power cords must bend easily without damaging the insulation or connectors. Look for power cords with flexible jackets that can withstand tight routing and repeated movement. Shielded or braided cables also provide added durability.
Selecting the right data center power cord types is only the beginning. Proper management ensures long-term reliability and safety.
Design cable routes that separate power and data lines to minimize interference. Use dedicated cable trays or overhead raceways to prevent tangling and ensure accessibility.
Employ cable organizers, racks, and labels to keep power cords neatly arranged. Proper bundling not only looks cleaner but also improves airflow, reducing cooling costs.
Loose connections and worn-out insulation can cause downtime or fire hazards. Implement scheduled maintenance checks to confirm that all plugs are firmly seated and free from damage.
As mentioned earlier, color-coded cables simplify troubleshooting. Combine this with clear labeling to ensure that technicians can quickly identify circuits, sources, and destinations.
Maintain accurate records of your cabling layout, including data center power cord types, routes, and connection points. Updated documentation supports faster upgrades and reduces human error during maintenance.
The right data center power cord is more than a simple accessory — it's an integral component of your power delivery system. Choosing the correct cord type, gauge, and length helps maximize efficiency, prevent downtime, and maintain safety standards.
By understanding the differences between IEC and NEMA connectors, assessing your power requirements, and following structured cable management practices, you can build a reliable and future-proof data center infrastructure.
Whether you're designing a new facility or upgrading an existing one, investing in quality, certified data center power cables will pay off in uptime, performance, and peace of mind.
For power cord solutions, please contact A-Line's technical team to receive professional consultation and project recommendations.
