Air conditioners are among the most power-hungry appliances in the home. Unlike lamps, chargers, or small kitchen devices, AC units draw a large amount of current when running. That's why ordinary household extension cords are not suitable for air conditioners—they can overheat, melt, or even cause fire hazards.
To keep your cooling system safe and efficient, choosing the best heavy-duty extension cord for AC units is essential.
In this guide, we'll cover why special heavy-duty cords are needed, what specifications to look for, and how to use them safely.
Air conditioners, whether portable or window-mounted, consume much more electricity than most appliances. A typical small window AC may draw 500–1500 watts, while larger portable units can pull over 2000 watts. This translates into 5–15 amps of continuous current flow.
Using a lightweight or undersized extension cord can result in:
Overheating of wires due to high current
Voltage drops that reduce AC efficiency
Tripped breakers or blown fuses
Electrical fires caused by melting insulation or sparks
Unlike general-purpose extension cords designed for lamps or electronics, AC extension cords are built with thicker wire, it's often 12 gauge, heavy-duty plugs, and higher amp ratings. They are specifically engineered to handle the surge current when your AC compressor cycles on.
When shopping for a heavy-duty extension cord for your AC unit, you should pay close attention to the following specifications:
Recommendation: 12-gauge extension cord
A 12-gauge wire supports higher amperage and ensures minimal voltage drop. Protect your air conditioner and extend its lifespan while ensuring the safety of electricity.
Thinner wires, like 14 or 16 gauge, are not recommended for AC units, as they can overheat under continuous load.

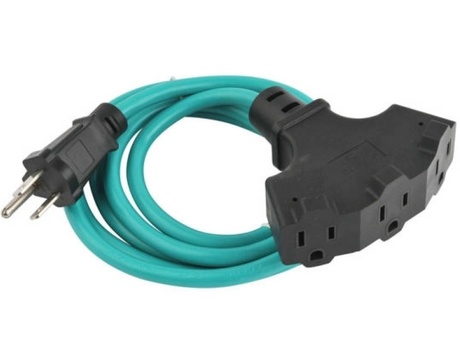

Look for three-prong grounded plugs, because the third prong connects to the grounding system of your home's wiring. If there's a short circuit, surge, or fault in the AC unit, the grounding wire safely directs excess current into the ground instead of through the cord or the appliance.
Ensure the connectors are molded with durable, heat-resistant material. Molded, heat-resistant connectors ensure that your AC extension cord stays safe, secure, and durable under heavy electrical load.
Check your AC unit's label for amperage requirements (e.g., 10A, 12A, 15A), and use extension cords of the same specification.
Choose an extension cord rated for at least 15 amps to cover most small-to-medium AC units.
The longer the cord, the higher the risk of voltage drop, so choosing the right length of extension cords is very important.
Keep cords as short as possible—typically 6–25 feet is safe.
Avoid 50–100 ft cords for AC use, as they can significantly reduce performance.
Look for extension cords that carry certifications such as:
UL (Underwriters Laboratories)
CSA (Canadian Standards Association)
Certified cords meet strict safety standards, giving you peace of mind.
Even the best extension cord requires careful handling. Follow these best practices:
One device per extension cord: Never plug multiple appliances into the same extension cord as your AC.
Avoid coiling or covering: Coiled or carpet-covered extension cords trap heat and can overheat, which is definitely dangerous and can easily cause fires.
Regular inspections: Check the extension cord for cracks, frays, or signs of heat damage. Replace immediately if damaged.
Temporary vs. permanent use: Extension cords are a temporary solution. For long-term use, consider installing a dedicated outlet.
Use grounded outlets only: Always plug into a grounded wall socket with proper circuit protection.
Heavy-duty extension cords are especially useful for:
Portable Air Conditioners (Portable ACs): Often placed in different rooms, these units benefit from a short, safe heavy-duty extension cord.
Window Air Conditioners (Window ACs): When the outlet is slightly out of reach, a 12-gauge air conditioner extension cord provides safe connectivity.
Small Mobile Cooling Equipment: Devices such as spot coolers or compact dehumidifiers may also require a sturdy extension cord.
A common question is: What amp extension cord for an air conditioner?
Small AC units: 10–12 amps → Use at least a 12 gauge, 15A cord
Medium AC units: 12–15 amps → Use a 12-gauge, 15–20A cord
Large AC units (15+ amps): Avoid extension cords; install a dedicated outlet

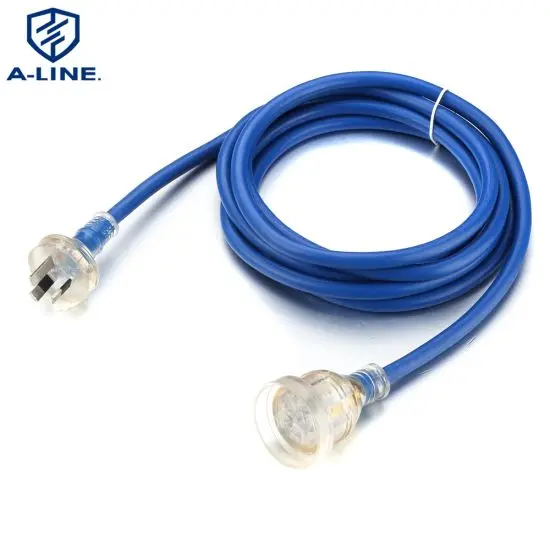

When safety and reliability are a priority, it's essential to source from proven extension cord manufacturers. A-Line Cable stands out as a trusted supplier of heavy-duty extension cords, high-performance wires, and custom cable solutions. Here's why A-Line is the preferred choice for both residential and industrial applications:
A-Line Cable uses premium copper conductors to ensure excellent conductivity and reduced energy loss.
All insulation and jacketing materials are heat-resistant, durable, and compliant with international safety standards, making them suitable for high-load appliances like AC units.
All products meet or exceed UL, CSA, CE, and RoHS certifications, guaranteeing safety, reliability, and eco-friendliness.
Extension cords are engineered to handle continuous heavy loads without overheating, giving users peace of mind.
A-Line Cable offers custom lengths, gauges, and connector options to match different AC unit requirements.
Whether for portable ACs, window ACs, or industrial cooling equipment, A-Line provides tailored solutions.
With molded, heat-resistant connectors and reinforced outer jackets, A-Line's cords are built to withstand bending, pulling, and long-term use.
They resist wear, cracking, and environmental stress, ensuring long-lasting performance.
Choosing A-Line Cable means choosing safety, durability, and professional-grade performance. For contractors and businesses looking for the best heavy-duty extension cords for AC units, A-Line is the partner you can rely on.
Air conditioners demand a lot from your electrical system, and not all extension cords are up to the task. By choosing a heavy-duty, 12-gauge extension cord with the correct amp rating and safety certifications, you can keep your AC running efficiently without risk of overheating or fire.
Always use a dedicated heavy-duty cord for AC units
Stick to 12-gauge wires for maximum safety
Keep the cord short and grounded
Choose cords with UL/CSA certification
For long-term setups, consider a dedicated outlet instead of relying on extension cords
When in doubt, remember: Safety first. The right extension cord not only protects your AC but also safeguards your home.
