Power Cord Manufacturing Process: How Are Power Cords Made?

Power cords are a ubiquitous feature in our modern world, connecting our devices to the electrical grid and enabling them to function. From the chargers for our smartphones to the cables powering our household appliances, power cords play a vital role in keeping our electronic devices operational. But have you ever wondered how these essential components are made?

In this article, we'll take a closer look at the power cord manufacturing process to understand the steps involved in creating these vital connectors.

Step1: Material Selection

The first step in the manufacturing process is the selection of materials. Power cords typically consist of several components, including the conductor, insulation, jacket, and plugs. Copper is the most commonly used material for the conductor due to its excellent electrical conductivity. The insulation and jacket are typically made from materials such as PVC (polyvinyl chloride) or rubber, chosen for their durability and flexibility.

Following are different materials for conductor, insulation and jackets, you can choose according to your needs:

Conductor Materials

(1) Copper: Most common due to high conductivity, affordability, and flexibility.

(2) Aluminum: Used for larger conductors or weight-sensitive applications, but has lower conductivity.

(3) Tinned Copper: Offers improved corrosion resistance, suitable for moisture-prone environments.

Insulation Materials

(1) PVC (Polyvinyl Chloride): Widely used for its good electrical insulation, affordability, flexibility, and abrasion resistance.

(2) Rubber: Preferred for flexibility and temperature resistance, ideal for harsh environments.

(3) XLPE (Cross-linked Polyethylene): Offers better thermal and mechanical properties, higher temperature resistance, and lower dielectric losses compared to PVC and rubber.

Jacket Materials

(1) PVC (Polyvinyl Chloride): Versatile, cost-effective, provides good protection against physical damage, moisture, and abrasion.

(2) TPE (Thermoplastic Elastomers): Offers enhanced flexibility and temperature resistance, suitable for varied temperature environments.

(3) PU (Polyurethane): Provides excellent resistance to abrasion, chemicals, and UV radiation, ideal for outdoor or industrial use.

Step2: Wire Drawing and Preparation

The conductor is the core component of the power cord responsible for carrying electrical current. Copper rods received from suppliers are too thick for direct use in power cords and must be drawn through a series of dies to reduce their diameter to the required size.

This process, known as wire drawing, is performed until the copper wire reaches the desired thickness. This process also helps to improve the conductivity and tensile strength of the wire. The wires are then annealed to improve their electrical conductivity and flexibility.

Step3: Insulation Application

After the conductor is produced, the next step is to apply insulation. The copper wire is passed through an extrusion machine where a layer of insulating material, typically PVC, is applied around the wire. The extrusion process ensures uniform coating and adherence of the insulation to the conductor. This insulation layer, typically PVC, rubber, or XLPE, provides electrical insulation and protection.

Step3 Insulation Application

The thickness of the insulation is carefully controlled to meet safety standards and provide adequate protection against electrical hazards. Additionally, fillers may be added to maintain the cable's shape, and shielding materials may be applied to protect against electromagnetic interference.

Step3 Insulation Application2

Step3 Insulation Application3

Step4: Cooling, and Rolling

Once the insulation is applied, the wire passes through a cooling chamber equipped with water or another coolant. In this chamber, the wire is rapidly cooled to solidify the insulation and prevent deformation. The cooling process ensures that the insulation adheres properly to the conductor and maintains its shape. The cooling chamber may consist of a conveyor belt system through which the wire travels, allowing for efficient cooling along its length.

Step4 Cooling, and Rolling

Following cooling, the insulated wire is fed into a rolling machine. This machine is equipped with rollers that carefully roll the wire into a compact and manageable coil. Rolling the wire helps to facilitate subsequent handling and processing steps. The rolling machine ensures that the wire is neatly coiled without causing damage to the insulation or conductor.

Step4 Cooling, and Rolling2

Step5: Jacketing and Cutting

Following insulation, the power cord may undergo jacketing for additional protection and durability. The jacket, typically made from PVC or rubber, provides a protective outer layer that shields the cord from physical damage and environmental factors. The jacketing process involves extruding the outer layer of material over the insulated conductor, similar to the insulation application process. Then, the wire will be cutted to fixed length required by customers.

Step5 Jacketing and Cutting

Step5 Jacketing and Cutting2

Step6: Plug Assembly

The next step is to attach plugs to both ends of the cord. To install plug on the one end, the end of the power cord is stripped to expose the conductor wires. This is typically done using a wire stripper tool to remove a small portion of the insulation.

Step6 Plug Assembly

The exposed conductor wires are then connected to the terminals inside the plug. This can be achieved through various methods such as screw terminals or crimp connectors. Once the connections are made, the plug housing is closed and secured to encapsulate the terminal connections.

Step6 Plug Assembly2

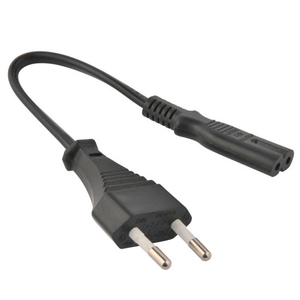

The plugs on the other end are typically made from molded plastic and contain metal prongs or pins that make contact with the electrical outlet. The plug assembly process involves inserting the conductor into the plug housing and securely fastening it in place. This may also include crimping or soldering connections to ensure proper electrical contact.

Step6 Plug Assembly3

Step7: Quality Control

Throughout the manufacturing process, stringent quality control measures are implemented to ensure that each power cord meets safety and performance standards. This includes testing the conductivity of the conductor, inspecting the integrity of the insulation and jacketing, and verifying the functionality of the plugs. Any defects or inconsistencies are identified and corrected to ensure the final product meets the required specifications.

Step8: Packaging and Distribution

Once the power cords have undergone quality control checks and passed inspection, they are packaged and prepared for distribution. Packaging may vary depending on the intended use and market requirements, but typically involves sealing the cords in protective sleeves or boxes. From there, the power cords are shipped to retailers, wholesalers, or directly to consumers for use in various electronic devices.

In conclusion, the manufacturing process of power cords involves several intricate steps, from material selection to quality control. By understanding how power cords are made, we gain insight into the complexity and precision involved in producing these essential components that power our modern world. Whether it's charging our smartphones or running our household appliances, power cords play a crucial role in keeping our devices connected and operational.
