Custom Wiring Harness vs. Off-the-Shelf Wiring Harness


What is an off-the-shelf wiring harness?


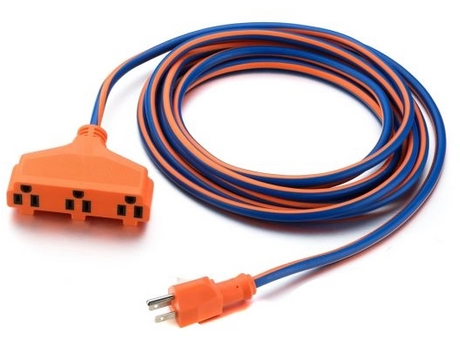

Off-the-shelf wiring harnesses are pre-manufactured, readily available wiring assemblies designed for general use. These harnesses come with standardized specifications and configurations, making them suitable for various applications in industries like automobiles, consumer electronics, and telecommunications.


While off-the-shelf wiring harnesses offer advantages like cost-effectiveness and rapid availability, they are best suited for industries with standardized requirements and high-volume production. For sectors like industrial automation, medical equipment, and aerospace, which have unique specifications and strict standards, off-the-shelf harnesses may fall short.


This article will delve into the key differences between off-the-shelf and custom wiring harnesses, helping you decide when to opt for each based on your specific needs.


The difference between a custom wiring harness and an off-the-shelf wiring harness

Product performance differences lead to different application

Off-the-shelf wiring harnesses are mass-produced to meet general specifications, making them suitable for common applications. However, their generic design may not deliver optimal performance for projects with specific requirements. These wiring harnesses might work well in standard conditions, but when faced with unique challenges or operating in specialized environments, their performance can be compromised.


Some examples of challenges that off-the-shelf wiring harnesses may face when operating in unique or specialized environments:

Extreme temperatures

Off-the-shelf wiring harnesses may not be designed to withstand extremely high or low temperatures. Generally, they can withstand temperatures ranging from 80°C to 125°C (176°F to 257°F), and withstanding high-temperature conditions is not a factor that needs to be considered. They are mainly suitable for automotive, consumer electronics, and general industrial applications. Of course, there are wiring harnesses for high-temperature environments on the market, which can withstand a temperature range of up to 200°C.


However, for domestic ovens, the temperature is typically 150°C to 260°C (300°F to 500°F), while industrial ovens can reach much higher temperatures, in some cases exceeding 500°C (932°F). Obviously, the wiring harness currently on the market cannot achieve this temperature resistance to handle such extreme temperatures. At this time, you need to consider customizing the wiring harness to meet your needs.


Vibration and shock

Off-the-shelf wiring harnesses may not be engineered to withstand the rigors of environments marked by elevated levels of vibration and shock, such as those prevalent in heavy machinery or aerospace applications. These commercially available wiring solutions are typically designed for more common applications and may lack the specialized reinforcement required to endure prolonged exposure to intense vibrations.


In comparison, off-the-shelf wiring harnesses are generally tested and rated for standard operating conditions. However, when subjected to continuous stress from high levels of vibration, these harnesses may exhibit premature wear and are at an increased risk of potential failure. For instance, heavy machinery or aerospace applications often involve sustained vibrations that surpass the specifications for which off-the-shelf wiring harnesses are intended.


Consider this: a typical off-the-shelf wiring harness may be rated for vibration resistance up to a certain frequency and amplitude, say 50 Hz and 2g. In contrast, heavy machinery or aerospace applications may subject wiring to vibrations exceeding 100 Hz and 5g. In such cases, the generic harness, lacking the necessary robustness, may prove inadequate for prolonged use in these demanding conditions.


Electromagnetic interference (EMI)

Off-the-shelf wiring harnesses may fall short in applications with strict electromagnetic interference (EMI) requirements, particularly in the medical or aerospace sectors. These generic solutions often lack the necessary shielding or grounding features, posing a risk of signal disruption in sensitive electronic systems.


In medical equipment, precision is paramount. Standard wiring harnesses may not meet EMI shielding standards, risking compromised diagnostic accuracy. Similarly, aerospace, communication and navigation systems demand robust EMI protection. While generic harnesses might provide around 50 dB shielding effectiveness, aerospace standards often require over 80 dB.


Custom wiring harnesses are meticulously crafted to align precisely with the specifications of your project. Engineers take into account factors such as voltage, current, temperature, and environmental conditions to ensure the wiring harness performs flawlessly in your specific application. This tailored approach minimizes the risk of performance issues, ensuring your electronic systems operate efficiently and reliably.


Product specifications differences lead to different applications

Off-the-shelf wiring harnesses, while convenient for standard applications, come with limitations in terms of customization. These wiring harnesses are produced in large quantities with a one-size-fits-all mentality, leaving little room for adjustments.


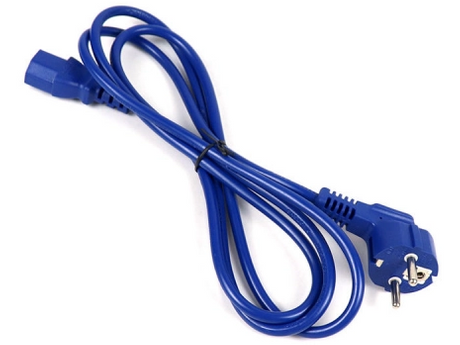

The general specifications of off-the-shelf wire harnesses are as follows: wire gauges (e.g., 18 AWG or 22 AWG), connectors (e.g., USB, D-sub, or circular connectors), lengths (e.g., 1 meter, 2 meters, or 5 meters), and color coding (e.g., red for power, black for ground), etc. This uniformity ensures compatibility, wide acceptance, and easy integration without extensive modifications.


If your project requires unique connectors, cable lengths, or special configurations, an off-the-shelf solution may fall short of meeting your needs.


Wiring harness cable lengths

In a smart home integration, devices like sensors, cameras, or smart thermostats may be placed at varying distances from the central hub. Off-the-shelf wiring harnesses can't be used in this scenario because standard lengths may not match the spatial requirements of the home, leading to inefficiencies and potential aesthetic issues. Custom wiring harnesses allow precise lengths tailored to the spatial layout of the home, avoiding excess wiring and ensuring a neat installation.


You can also consider the telecommunications industry, where signal integrity is paramount. Off-the-shelf harnesses might offer lengths in increments of 1 meter, yet a specific application may demand a 3.5-meter cable for optimal signal transmission. In such cases, using a generic wiring harness could result in excess cabling, introducing the risk of signal interference and reducing overall system performance.


Special configurations and connectors

Off-the-shelf wiring harnesses may not be suitable for applications requiring specific configurations to meet unique design specifications. Generic solutions, designed for common applications, might lack the specific connections, pinouts, or routing needed for unconventional setups.


Imagine a scenario in home appliance innovation where a standard wiring harness may have connectors designed for typical kitchen appliances. However, in a unique design requiring a non-standard configuration, like a smart home appliance with advanced features, the off-the-shelf harness may not possess the required connectors or pinouts. This mismatch could result in compatibility issues, potentially affecting the functionality of essential components in the home appliance system.


Whether your project demands specific connectors, non-standard cable lengths, or intricate designs, a custom wiring harness can be tailored to your exact specifications. This level of flexibility ensures that the wiring solution seamlessly integrates with the intricacies of your project, offering a bespoke solution that fits like a glove.


Price difference

Cost is a crucial consideration in any project, and wiring harnesses are no exception. Off-the-shelf options are generally more budget-friendly upfront, making them an attractive choice for projects with standard requirements and tight budget constraints. However, it's essential to factor in potential modification costs and the long-term impact on performance.


Custom wiring harnesses may have a higher initial cost due to the bespoke nature of their design. However, this investment can lead to long-term cost savings. By eliminating the need for extensive modifications and ensuring optimal performance from the outset, custom wiring harnesses can prevent costly downtime and repairs, making them a financially sound choice over the lifespan of your project.


When to use a custom wiring harness or an off-the-shelf wiring harness?

When to use an off-the-shelf wiring harness?

1. Standard applications

For projects with standard requirements and widely used components, off-the-shelf wiring harnesses are a convenient and cost-effective choice.

2. Budget constraints

When budget considerations are paramount, off-the-shelf options are generally more economical, as they are mass-produced and readily available.

3. Quick turnaround

Projects with tight deadlines may benefit from the immediate availability of off-the-shelf wiring harnesses, reducing lead times compared to custom manufacturing.

4. Common connectors and configurations

If your project involves widely used connectors and standard configurations that align with off-the-shelf options, it makes sense to choose the convenience of readily available wiring harnesses.


When to use a custom wiring harness?

1. Unique specifications

If your project demands specific connectors, cable lengths, or configurations that are not met by off-the-shelf wiring harnesses, a custom solution ensures precise alignment with your requirements.

2. Performance optimization

For applications where performance is critical, such as in aerospace or medical devices, a custom wiring harness can be engineered to meet the exact specifications, ensuring optimal functionality.

3. Harsh environments

Projects operating in extreme conditions, like high temperatures, vibrations, or exposure to chemicals, benefit from custom wiring harnesses designed with materials and features that withstand these challenges.

4. Long-term cost efficiency

While the upfront cost of custom wiring harnesses may be higher, they can lead to long-term cost savings by minimizing the need for modifications, reducing downtime, and preventing premature failures.

5. Future scalability

If your project is expected to evolve or expand in the future, a custom wiring harness can be designed with scalability in mind, making it easier to integrate new components or adapt to changes.

6. Specific standards or regulations

Industries with specific standards or regulations, such as medical or automotive, may require custom wiring harnesses to ensure compliance and meet safety or performance requirements.


In the realm of wiring harnesses, the choice between custom and off-the-shelf options is pivotal. Consider the specific needs of your project, weigh the performance, customization, and cost factors, and make an informed decision that ensures the seamless functioning of your electronic systems.
