In today’s globally connected marketplace, electrical products often cross borders—from manufacturing in Asia to distribution in Europe, the Americas, or Australia. One critical yet often overlooked component in this global flow is the power cord. These cords are not universal; they must meet the safety, voltage, frequency, and plug configuration requirements of the target region.
Whether you are an OEM (Original Equipment Manufacturer), an electronics exporter, or a retailer, understanding the differences between US standard power cords, VDE power cords, and AUS power cords is essential. This knowledge ensures product safety, regulatory compliance, and customer satisfaction.
Summary chart: comparing the US, VDE (EU), and AUS power cords
Feature | US Standard Power Cord | VDE Power Cord (EU) | AUS Power Cord |
Voltage Rating | 110–120V | 250V | 250V |
Frequency | 60Hz | 50Hz | 50Hz |
Common Plug Types | NEMA 1-15 (2-prong), NEMA 5-15 (3-prong) | SCHUKO (CEE 7/7) | AS/NZS 3112 |
Pin Configuration | Flat pins (parallel) | Round pins with side grounding contacts | Angled flat pins (partially insulated) |
Grounding Type | Optional (2 or 3-prong) | Grounded via side contacts | Grounded flat pin |
Certification Body | UL (Underwriters Laboratories) | VDE (Germany/Europe) | SAA, ERAC-approved certifiers |
Regional Use | USA, Canada, Mexico, Central America | EU countries, parts of Asia & Africa | Australia, New Zealand, Papua New Guinea |
Related Products | https://www.alinecable.com/Power-Cord-pl3287733.html#American-Power-Cord- | https://www.alinecable.com/Power-Cord-pl3287733.html#European-Power-Cord-2 | https://www.alinecable.com/Power-Cord-pl3287733.html#Australian-Power-Cord- |
Power cords vary by country and region, primarily due to differences in voltage levels, plug shapes, and electrical certification systems.

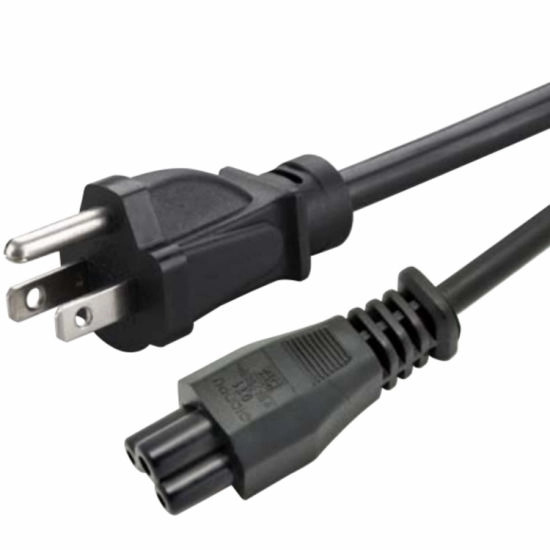

The US standard power cord adheres to specifications set by Underwriters Laboratories (UL). Most cords are rated for 110–120V at 60Hz and use NEMA (National Electrical Manufacturers Association) plug types. Common plug types include NEMA 1-15 (two-prong) and NEMA 5-15 (three-prong, grounded).
These cords are widely used throughout the United States, Canada, Mexico, and parts of Central America.
VDE power cords conform to German and broader European standards. The voltage rating is typically 250V at 50Hz, and the most recognized plug is the SCHUKO (CEE 7/7) plug, known for its robust grounding and compatibility across many EU countries.
VDE certification, managed by the Association for Electrical, Electronic & Information Technologies (VDE), ensures safety and quality compliance under European directives.

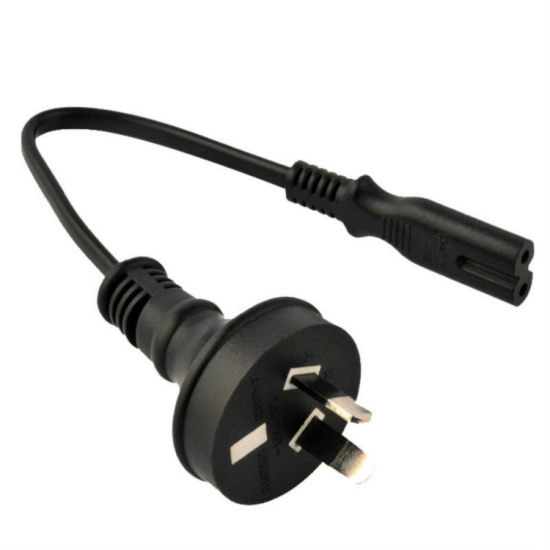

In Australia and New Zealand, power cords follow the AS/NZS 3112 standard. These AUS power cords support 250V at 50Hz and are instantly recognizable by their angled flat pins and partially insulated live and neutral pins—offering enhanced safety.
Approval is managed by the Standards Association of Australia (SAA) and other certifying bodies recognized under the ERAC framework.
Understanding electrical specifications is crucial to ensure compatibility and avoid hazards when using or selling electrical equipment in international markets.
Voltage & Frequency:
US systems run on 120V/60Hz, while Europe and Australia use 250V/50Hz. Using a US cord in an EU or AUS setting (or vice versa) can lead to underperformance or equipment damage.
Plug Shape & Pin Configuration:
US: Flat pins (parallel or with ground)
EU: Round pins with grounding clips
AUS: Angled flat pins
Grounding Methods:
Each region enforces its grounding approach for safety. Incorrect grounding can result in electrocution or device failure.
Compatibility:
Most plugs are not interchangeable, and universal adapters may not provide grounding or voltage conversion—leading to unsafe use.
Power cords must meet strict regional certification standards to ensure performance and user safety.
UL (Underwriters Laboratories) tests and certifies power cords based on standards for fire resistance, electric shock prevention, and durability. Products marked "UL Listed" are verified for use in the U.S. and recognized across North America.
VDE is one of Europe’s most trusted certification marks. It ensures that cables meet the Low Voltage Directive (LVD) and CE requirements for safety. VDE certification is required for most electrical equipment sold in the EU.
SAA approval certifies that the product complies with AS/NZS 3112 and meets electrical safety standards as per the Electrical Equipment Safety System (EESS). All electrical products sold in Australia must be registered with ERAC-approved bodies.
Failing to use certified cords can lead to:
Legal issues
Product recalls
Warranty voiding
Injury or property damage
Always check with certified testing laboratories and regulatory authorities before launching products into international markets.
OEMs and exporters must identify the destination market’s voltage, frequency, and plug type before finalizing power cord designs. Choosing the wrong cord:
Delays shipping
Increases product returns
Damages brand reputation
Tip: Provide region-specific cord sets or modular designs that allow cord swapping during distribution.
Retailers should ensure that imported electronics come with region-compliant cords. Many end-users do not understand electrical standards, so providing the correct cord minimizes customer complaints and returns.
Using the wrong cord type can cause:
Overheating
Fuse or breaker failure
Permanent damage to devices
Always use manufacturer-recommended cords, and never force incompatible plugs into foreign outlets—even with adapters.
With globalization blurring the boundaries of trade, it's easy to overlook the fine details of electrical compatibility. However, power cords are not universal, and their misuse can lead to serious consequences—from product damage to life-threatening hazards.
To ensure safety, efficiency, and compliance:
Always choose cords with region-specific certifications: UL, VDE, or SAA.
Understand voltage, frequency, and plug differences before entering a new market.
Consult certified suppliers or testing agencies to ensure your products meet international standards.
Being informed isn’t just good business—it’s essential for safety and success in the global marketplace.
A-Line Cable specializes in the production of region-specific power cords, including US standard power cords (NEMA types), VDE power cords (SCHUKO/CEE 7/7), and AUS power cords (AS/NZS 3112). These cords are designed to comply with the electrical standards and certifications of their target markets.
The main differences include:
Voltage/Frequency: VDE cords support 220–250V, 50Hz, while US cords support 120V, 60Hz.
Plug type: VDE uses SCHUKO round pin plugs; US cords use flat-blade NEMA plugs.
Certification: VDE cords are VDE-approved, while US cords carry UL certification.
A-Line manufactures both types to their respective international standards.
A-Line Cable works with globally recognized testing and certification agencies like UL, VDE, and SAA. All cords undergo rigorous quality control, including insulation resistance, high-voltage testing, and mechanical strength checks, to meet regional compliance requirements.
A-Line offers a wide range of international plug types, including:
NEMA 1-15, 5-15, 5-20 (US)
CEE 7/7 SCHUKO (EU)
AS/NZS 3112 angled flat pins (AUS)
They also provide custom molding, OEM branding, and cord configurations based on regional standards.
Yes. A-Line provides customizable power cord solutions based on customer specifications. You can select cord length, wire gauge (AWG), plug type, jacket material, and even color. This makes them an ideal supplier for OEMs and global exporters.
