C13 to C14 power cords are among the most common IEC power connections used across IT, networking, and office equipment. Despite their simple appearance, these cables are critical to ensuring reliable, safe, and efficient power delivery to sensitive electronic devices.
In this guide, we'll explain what a C13 to C14 power cord is, how it works, its typical applications, and how to choose the right model for your setup.

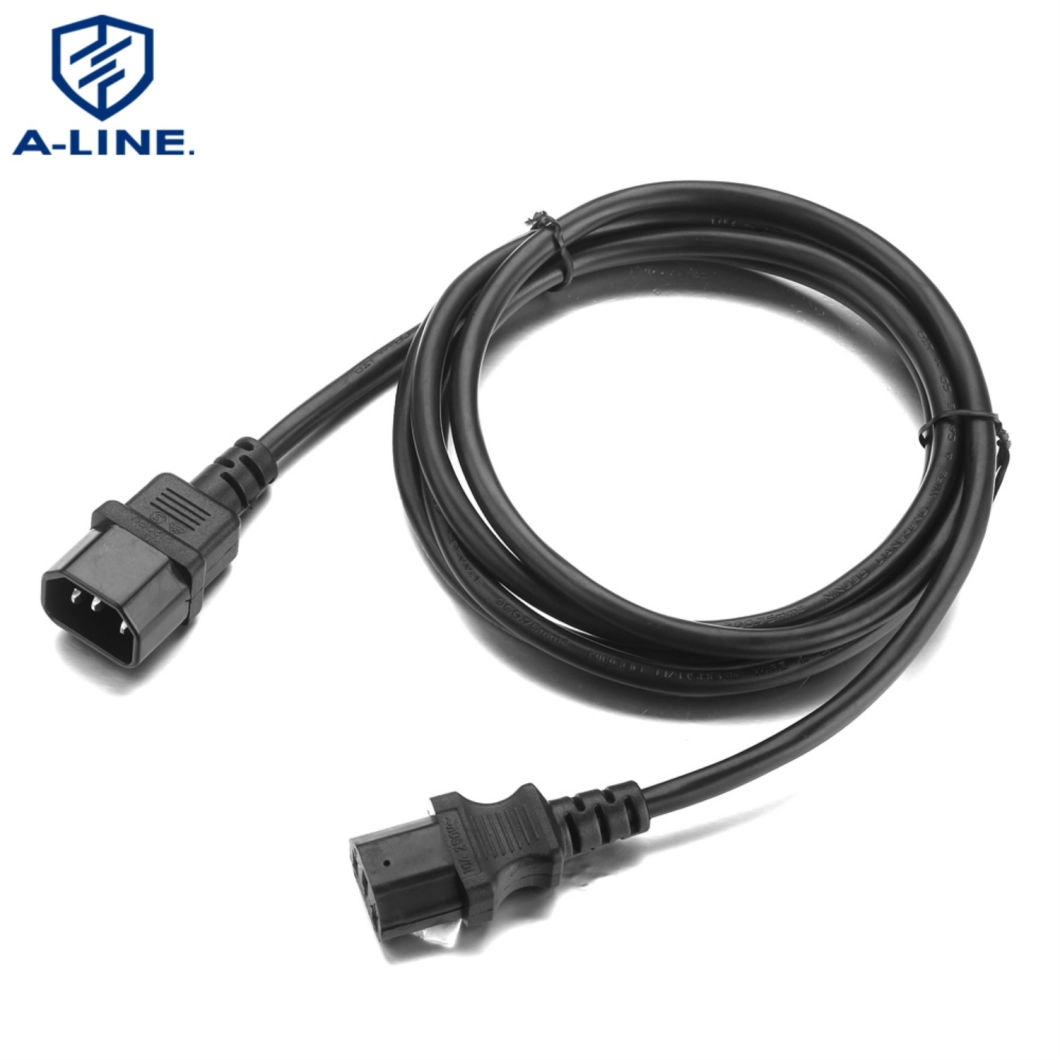

The IEC 60320 C13 to C14 power cord consists of two standardized connectors, including a C14 plug (male) and a C13 connector (female).
These connectors are part of the IEC 60320 standard, which defines international specifications for appliance couplers.
Both C13 and C14 types are three-pin, grounded connectors designed for safe and consistent AC power transmission.
Rated Voltage: up to 250V AC
Rated Current: typically 10A (some versions up to 15A depending on cable gauge and certification)
Temperature Rating: usually 70°C to 105°C, depending on insulation material.
The wire gauge of a C13 to C14 power cord determines its current-carrying capacity, heat generation, and voltage drop over distance. It is one of the most important specifications to consider when selecting a power cable for electronic or industrial equipment.
18 AWG: Ideal for light-duty applications such as desktop computers, monitors, printers, or other small office electronics. Suitable for short cable runs (typically under 2 meters) and low power loads.
16 AWG: A balanced choice for medium-power devices such as servers, workstations, or UPS systems. Offers lower resistance and reduced heat buildup compared to 18 AWG, making it suitable for continuous operation.
14 AWG: Designed for heavy-duty or high-current applications such as network racks, high-performance servers, or power-hungry lab equipment. The thicker conductor minimizes voltage drop and ensures stable current delivery even over longer distances.
In summary:
The smaller the AWG number, the thicker the conductor, and the greater the cable's ability to carry current safely. Choosing the correct wire gauge ensures your equipment operates efficiently without overheating or performance loss.
A C13 to C14 power cord is a precisely engineered product designed to provide safe, durable, and efficient power transmission between a power distribution unit (PDU), UPS, or wall outlet and electronic devices such as computers or servers.
Key construction elements include:

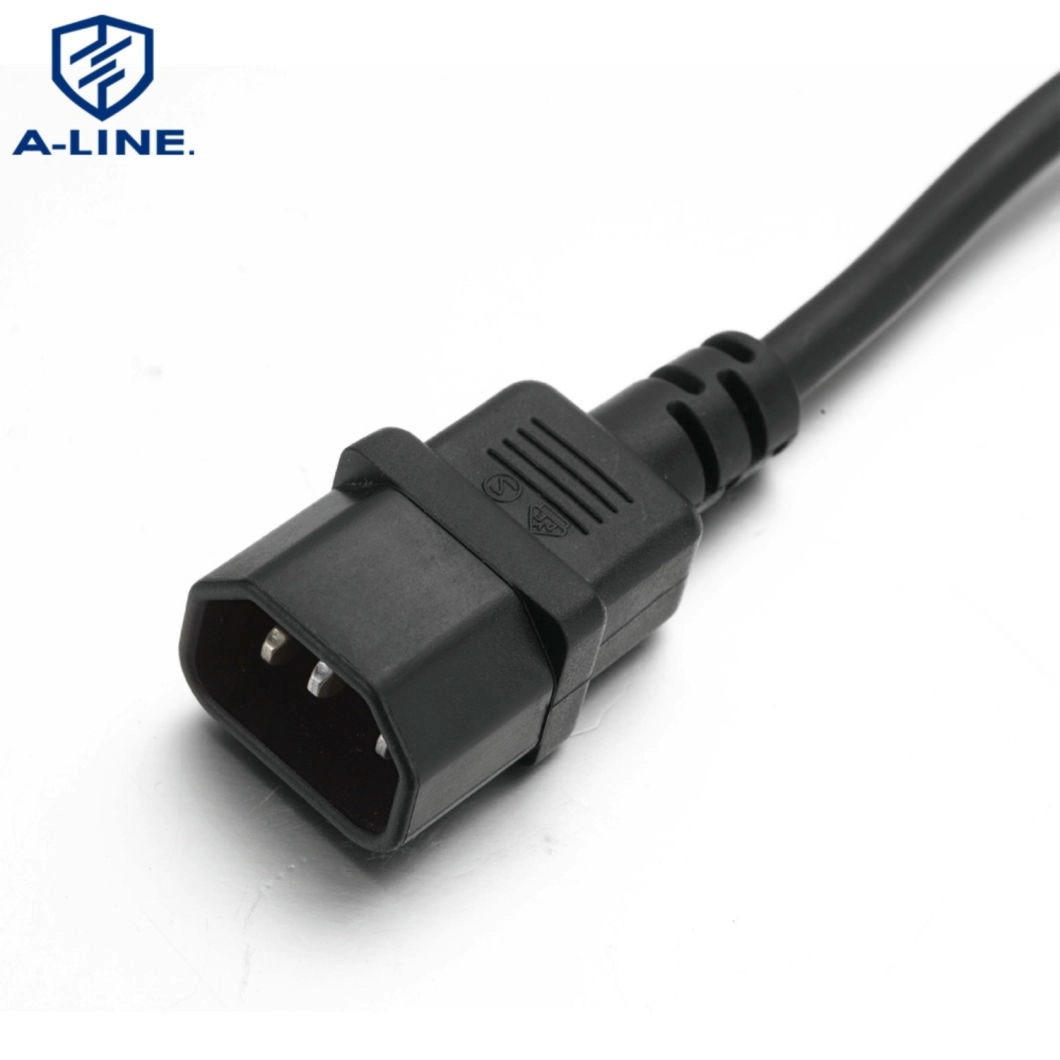

C14 Male Plug (Power Inlet): The male connector (C14) typically plugs into a PDU, UPS, or extension unit. It features three metal pins—live, neutral, and ground—enclosed in a sturdy housing that ensures a tight and secure fit.

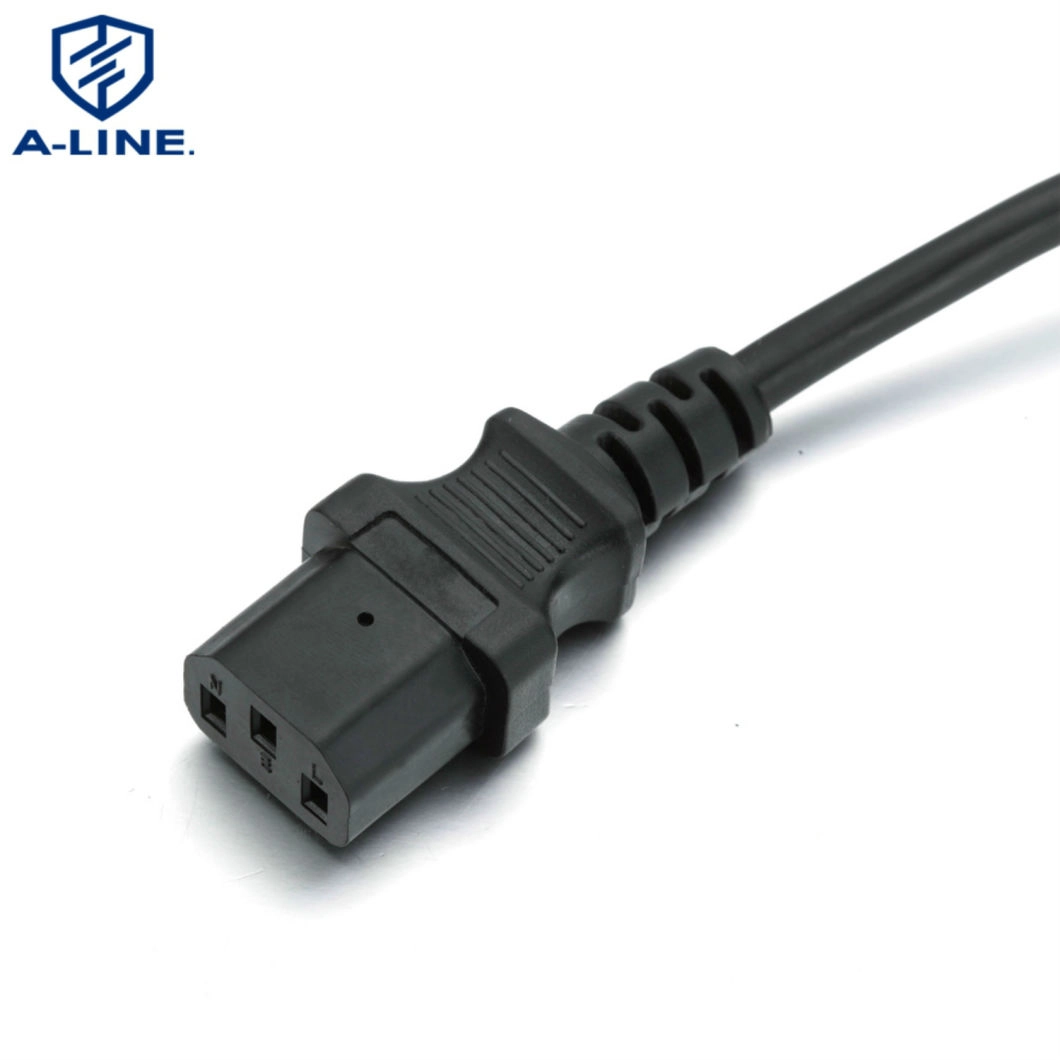

C13 Female Connector (Power Outlet): The female end (C13) connects to the device being powered, such as a PC, monitor, or server. It has three corresponding slots designed for a safe, grounded connection with C14 plugs.
Three-Conductor Cable (L/N/E): Each cord includes three internal copper conductors:
Live (Brown or Black): Carries current from the power source.
Neutral (Blue or White): Returns current to complete the circuit.
Ground (Green/Yellow): Provides safety grounding to prevent electrical shock.
Outer Jacket Material: The outer insulation protects the conductors from abrasion, moisture, temperature, and environmental damage. Common materials include:
PVC (Polyvinyl Chloride): Durable, flame-retardant, and cost-effective—ideal for general office or indoor use.
TPE (Thermoplastic Elastomer): Highly flexible and resistant to oils, cold, and abrasion—suitable for dynamic environments or frequent cable movement.
Rubber (Neoprene or similar): Offers superior toughness and resistance to impact, chemicals, and wear—ideal for industrial or demanding conditions.
Customization Choices: C13 to C14 cords are available in a variety of plugs (straight or angled), lengths (from 0.5m to 5m or more), colors (black, white, red, blue, etc.), and jacket materials to help with cable management, system organization, and voltage identification.
Together, these design features make the C13 to C14 power cord a versatile, reliable, and professional-grade connection solution for modern electrical and data environments.
Because of their versatility and standardized design, C13 to C14 power cords are widely used in:
Data centers and server racks: Connect PDUs to servers or switches.
Office and IT environments: Desktop PCs, monitors, printers, and docking stations.
Laboratories and industrial control systems: Powering test equipment or monitoring devices.
Backup power systems: Used as short extension cords between UPS and equipment.
Their modularity makes them ideal for cable management in confined spaces like cabinets or under desks.
Selecting the right IEC power cord ensures both electrical safety and equipment performance.
Always confirm that the power cord's voltage (250V) and current (10A or 15A) ratings match your equipment's requirements.
Overloading a cable may cause overheating or voltage drops that affect sensitive electronics.
A thicker wire (smaller AWG number) can carry more current with less resistance.
For example:
Application | Recommended Gauge |
Standard PC/Monitor | 18 AWG |
Mid-range Server | 16 AWG |
High-power Server or Long Cable | 14 AWG |
Longer cords introduce resistance, which can reduce voltage at the device end.
Use the shortest practical length for optimal efficiency.
Tight plug fit to prevent disconnection
Heat-resistant housings
Secure strain relief to prevent cable pull-out
Durable materials (often molded PVC or high-temperature nylon)
High-quality cables should comply with major safety standards:
SAA (Australia)
UL (United States)
VDE (Europe)
RoHS (restriction of hazardous substances)
These marks guarantee compliance with regional electrical safety and environmental standards.
Depending on the environment:
PVC jacket: cost-effective and flame-retardant; suitable for office setups.
TPE jacket: flexible and durable, ideal for frequent movement or bending.
Rubber jacket: maximum durability and abrasion resistance for industrial use.

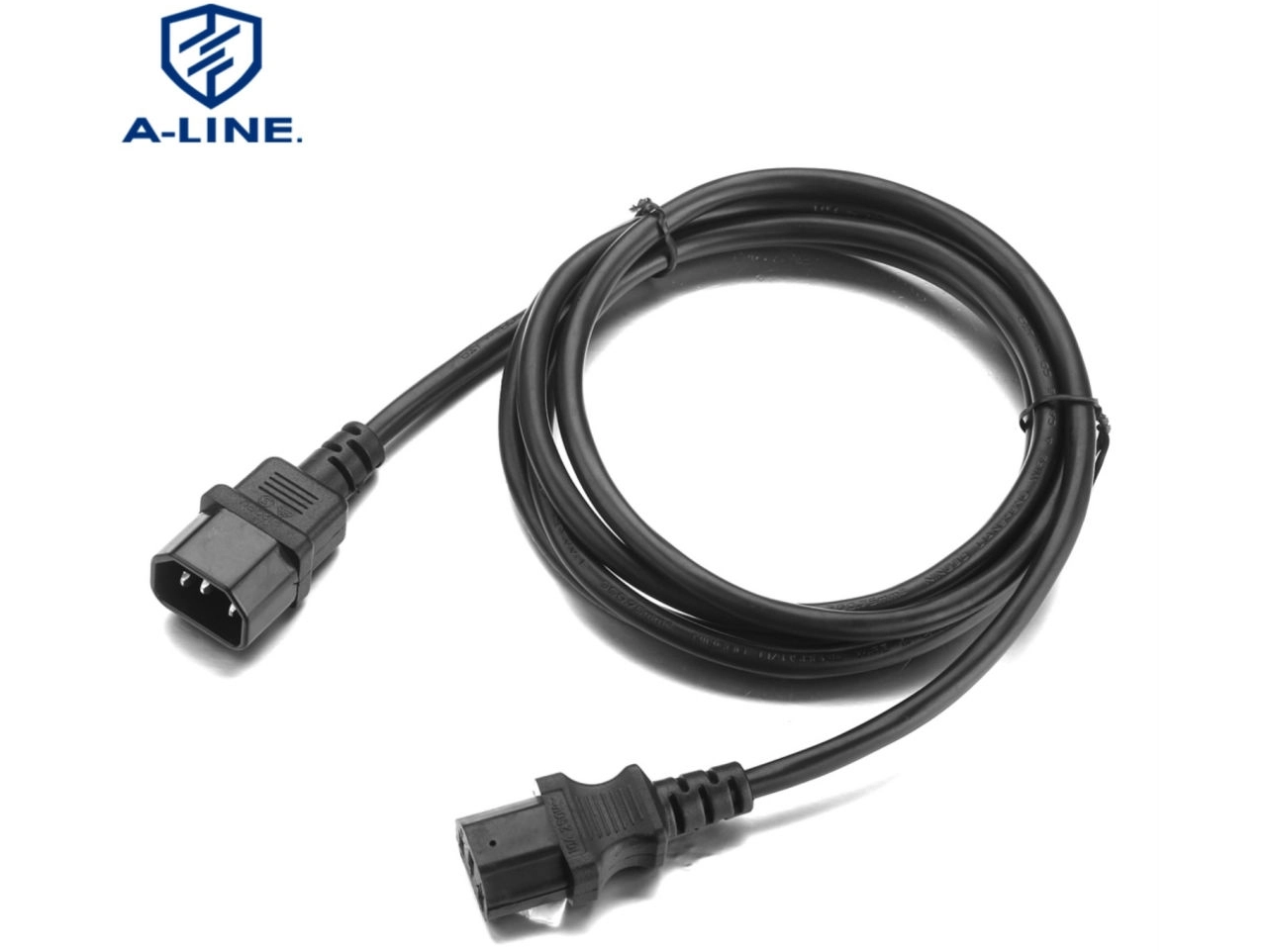

A-Line Cable's SAA-approved C13 to C14 power cords combine superior safety, flexibility, and performance for professional applications.
Key Features:
Certified Safety: SAA, VDE, and RoHS compliant.
Standard Design: C14 plug to C13 connector with full 3-wire grounding.
Rated 10A / 250V: Suitable for data centers, offices, and industrial systems.
Customizable options: Length, color, angle, and plug type.
Premium Materials: Durable insulation with strong strain relief and reliable conductivity.
Whether you're managing a data rack, upgrading office PCs, or integrating UPS systems, A-Line Cable ensures dependable power delivery with tailored cable solutions.
Learn more about A-Line Cable's Power Cords.
To ensure long-term safety and performance:
Always insert plugs fully because loose connections can cause heat buildup.
Avoid sharp bends or crushing the cable under heavy objects.
Inspect regularly for cracks, discoloration, or stiffness, and replace damaged cords immediately.
Keep away from excessive heat, moisture, or chemicals.
Do not daisy-chain multiple high-power devices on a single cord.
Proper handling extends service life and ensures a stable power supply to critical systems.
A C13 to C14 power cord may seem simple, but it plays an essential role in the reliability and safety of electronic equipment.
Understanding its structure, specifications, and ratings helps you choose the right cable for your needs—especially in data centers and professional environments.
With SAA-certified quality, custom options, and dependable performance, A-Line Cable provides trusted C13 to C14 power cords for any industrial or IT setup.
For technical assistance or bulk customization, contact A-Line Cable's expert team today.
