A 14 AWG extension cord is one of the most widely used power extension solutions for residential, commercial, and light industrial applications. Known for its balance between current-carrying capacity, flexibility, and cost efficiency, the 14 gauge extension cord is designed to safely deliver electricity to tools and equipment without excessive voltage drop or overheating.
In this guide, we will explain what a 14 AWG extension cord is, how many amps it can handle, how it compares to other common wire gauges, and how to choose and use it safely. Whether you are a contractor, distributor, or end user, understanding 14 AWG extension cords is critical for electrical safety and performance.
AWG (American Wire Gauge) is a standardized system used to measure wire diameter. In this system, the smaller the number, the thicker the wire and the higher the current it can safely carry.
A 14 AWG extension cord uses copper conductors with a diameter of approximately 1.63 mm (0.064 inches) per conductor. This gauge is commonly used in household branch circuits and medium-duty extension cords.
A standard 14 AWG extension cord typically features:
Copper conductors for efficient conductivity
Insulation materials such as PVC, SJTW, or outdoor-rated jackets
A 15-amp current rating under standard conditions
Compatibility with 120V power systems (North America) and other regional standards when properly designed
14 AWG extension cords are commonly used for:
Power tools (drills, saws, compressors)
Household appliances
Office and commercial equipment
Outdoor electrical devices (when outdoor-rated)
Their versatility makes them a preferred choice when 16 AWG extension cords are insufficient, but 12 AWG extension cords may be excessive or less flexible.
A 14 AWG extension cord is rated for up to 15 amps under normal operating conditions. This rating corresponds directly with standard 15-amp electrical circuits commonly found in residential and commercial buildings.
From a power perspective, this means a 14 AWG extension cord can safely deliver up to 1,800 watts on a 120-volt system. In regions using higher voltage systems, the same cord design can support higher wattage while maintaining the same current limit, provided it is manufactured and certified for those voltage standards.
The amperage rating is not just a number—it directly impacts safety and performance:
Avoids overloading: Exceeding the amp rating can cause insulation breakdown
Prevents overheating: Excessive current generates heat, increasing fire risk
Ensures voltage stability: Proper amperage capacity reduces power loss to connected devices
Using an extension cord with insufficient amp capacity is one of the most common causes of electrical accidents.
Wire Gauge | Max Amp Rating | Typical Use |
12 AWG | 20 amps | Heavy-duty tools, long runs |
14 AWG | 15 amps | Medium-duty tools, appliances |
16 AWG | 10–13 amps | Light-duty electronics |
14 AWG sits squarely in the middle, offering a strong balance of power capacity and flexibility.
Voltage drop increases with longer cable lengths and thinner wires.
14 AWG vs 16 AWG: 14 AWG experiences significantly less voltage drop over long distances, ensuring stable tool performance.
14 AWG vs 12 AWG: 12 AWG has the least voltage drop but is heavier, stiffer, and more expensive.
For extension cords over 25–50 feet, 14 AWG provides noticeably better voltage stability than 16 AWG.
Choose 16 AWG for lamps and small electronics
Choose 14 AWG for most power tools and appliances
Choose 12 AWG for high-draw equipment or long-distance power delivery
One of the primary advantages of a 14 AWG extension cord is its ability to carry current steadily without excessive resistance. This stability is particularly important for devices with motors, which require consistent voltage to operate efficiently and avoid premature wear.
Another key benefit is reduced voltage drop compared with thinner extension cords. By minimizing power loss along the cable length, a 14 AWG extension cord helps ensure that tools and appliances receive the voltage they are designed for, even when the cord is extended across a workspace.
Safety is also a major advantage. The thicker copper conductors used in 14 AWG extension cords generate less heat under load, which significantly lowers the risk of insulation damage and electrical fires when the extension cord is used correctly. At the same time, 14 AWG extension cords remain relatively flexible, making them easy to handle, coil, and transport compared with heavier 12 AWG alternatives.
From a cost perspective, 14 AWG extension cords deliver excellent value. They provide professional-level performance at a lower cost and weight than heavy-duty extension cords, making them a practical solution for both professional users and homeowners.
Because of their balanced performance characteristics, 14 AWG extension cords are widely used with power tools such as drills, circular saws, sanders, and light-duty air compressors. These tools often draw significant current during startup, and a 14 AWG cord provides the necessary capacity to handle these demands safely.
In household environments, 14 gauge extension cords are commonly used with appliances such as vacuum cleaners, microwaves, washing machines, and refrigerators during temporary setups. Their ability to handle higher current loads makes them safer than light-duty cords for these applications.
Commercial and office environments also benefit from 14 AWG extension cords, particularly for temporary power distribution, maintenance equipment, and office machinery. When equipped with outdoor-rated insulation, these cords are equally suitable for outdoor applications, including lawn equipment, pressure washers, construction tools, and outdoor lighting systems.
Selecting the appropriate length is one of the most important considerations when choosing a 14 AWG extension cord. Shorter lengths result in lower resistance and reduced voltage drop, while longer cords increase electrical loss. For most applications up to 25 or 50 feet, a 14 AWG cord provides reliable performance. For longer distances or higher-load equipment, upgrading to a thicker gauge may be advisable.
Insulation and jacket material should be chosen based on the intended environment. Indoor applications typically require standard insulation, while outdoor or industrial environments demand jackets that resist moisture, abrasion, oil, and UV exposure. Selecting the correct insulation ensures durability and long-term safety.

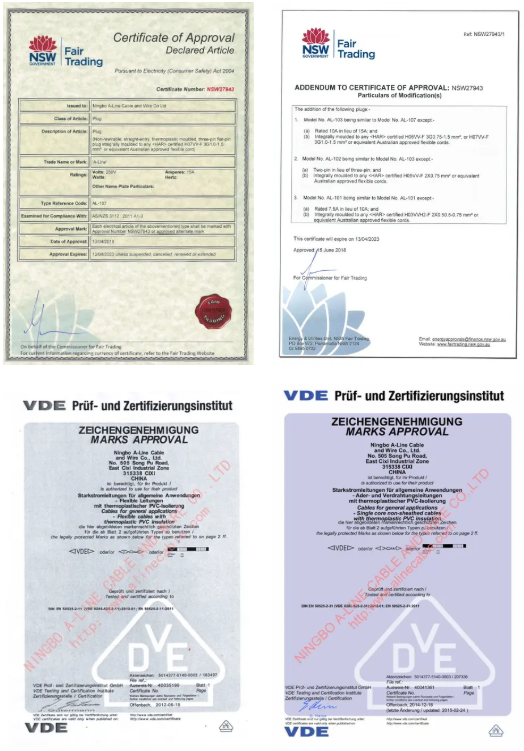

Equally important is certification. A high-quality 14 AWG extension cord should comply with recognized safety and environmental standards such as UL, VDE, SAA, CCC, and RoHS. Certified products undergo rigorous electrical and mechanical testing, providing assurance of consistent quality and regulatory compliance.
A-Line extension cords comply with major global standards, including UL, VDE, SAA, CCC, and RoHS, ensuring safety and regulatory compliance across markets.

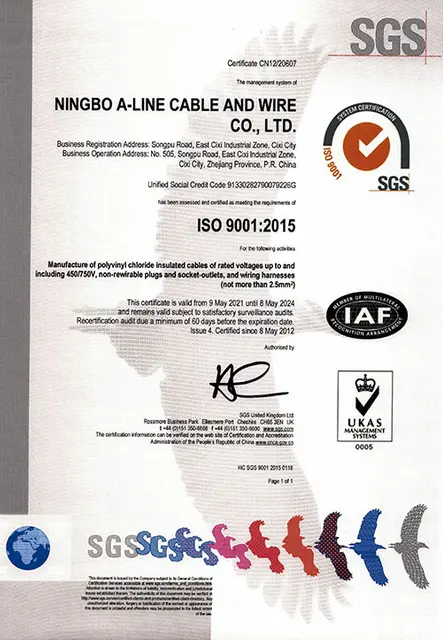

Manufactured under an ISO 9001:2015 quality management system, A-Line products are verified through professional laboratory testing, including:
Micro-resistance measurement
Tensile strength testing
DC resistance bridge analysis
A-Line also offers flexible customization services, supporting small order quantities, OEM projects, and tailored solutions to meet specific market or application requirements. With extensive export experience across Australia, Europe, the Americas, and Southeast Asia, A-Line products are engineered to comply with diverse voltage standards and regulatory frameworks.
Supported by a technical team with over 20 years of cable development experience and a sales team with deep international trade expertise, A-Line provides not only products but also professional technical support.
A 14 AWG extension cord is a reliable, safe, and cost-effective solution for powering a wide range of tools and equipment. With a 15-amp rating, reduced voltage drop, and excellent flexibility, it strikes the ideal balance between performance and usability.
By choosing the correct length, insulation, and certified manufacturer—such as A-Line—users can ensure safe operation, long service life, and consistent electrical performance in any application.
