In the world of electrical wiring, safety and compatibility are non-negotiable. Whether you're wiring a home, a factory, or a mobile generator, choosing the right electrical connector is
critical. That's where the NEMA Classification System comes in.
NEMA stands for the National Electrical Manufacturers Association, a U.S.-based organization that develops standards for electrical products. Among its most widely used standards is the NEMA plug and receptacle classification system, which ensures consistent design and compatibility for electrical connectors across applications.

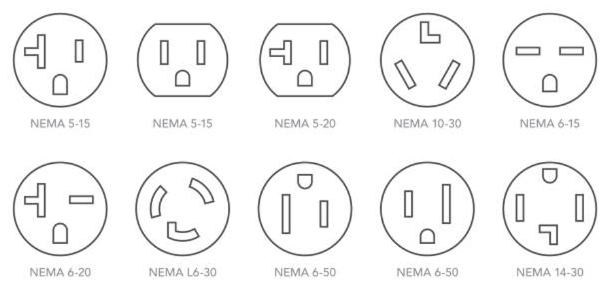

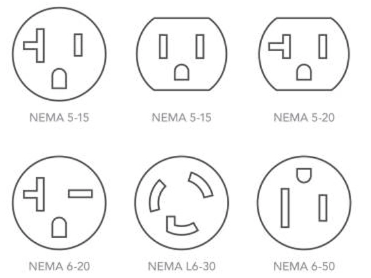

From simple wall outlets in your home to locking receptacles used on industrial equipment, the NEMA classification chart provides a standardized way to match plugs and receptacles based on voltage, amperage, grounding, and configuration. Whether you're an electrician, engineer, or DIY enthusiast, understanding this system is essential for safety, efficiency, and compliance.
At first glance, the NEMA plug and receptacle configuration chart might look complicated—but it's incredibly useful once you understand the structure.
Each NEMA configuration is represented by a code that typically follows this format: NEMA 5-15R:
"5" designates the configuration series (e.g., 125V, grounded)
"15" indicates the amperage (e.g., 15 amps)
"R" stands for receptacle (while "P" is for plug)
Some configurations use an L to indicate a locking connector. For example: NEMA L6-30P:
"L" stands for locking
"6" indicates the configuration series, for example: 250V, 2-pole, 3-wire grounded
"30" means 30 amps
"P" designates plug
These codes provide critical information about the connector's voltage, amperage, grounding, and physical pin layout.
There are two primary types of NEMA connectors:
Straight-blade connectors: Common in residential and light commercial applications. They plug and unplug easily.
Locking connectors (Twist-Lock®): Used in commercial and industrial environments to ensure plugs don't accidentally come loose.
Locking plugs are especially important in high-vibration or hazardous locations where disconnection could be dangerous.
The NEMA alphanumeric code helps electricians and engineers:
Avoid mismatching plugs and receptacles
Maintain proper grounding and safety
Choose the correct voltage and amperage rating
Comply with NEC (National Electrical Code) requirements
To fully understand NEMA configurations, it's important to distinguish between the three main types of devices:

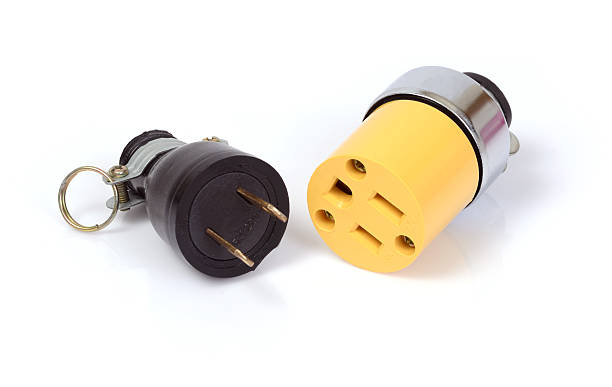

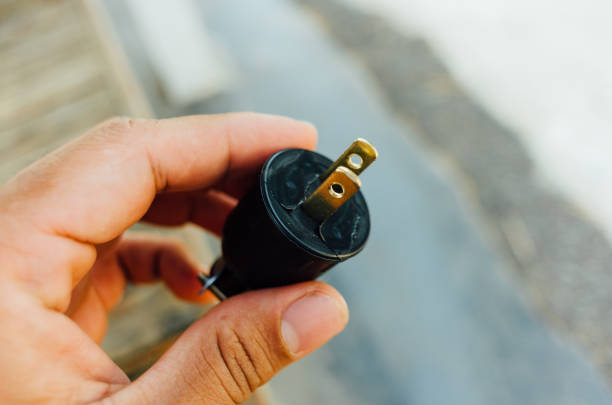

A plug (male connector) has prongs or blades and is attached to the end of a power cord. It inserts into a receptacle to provide power.
A receptacle (female outlet) is mounted in a wall or on equipment and receives the plug. It contains slots or holes for the plug's prongs.
A connector is also female, like a receptacle, but it's cord-mounted rather than wall-mounted. It connects to a male plug from another cord, commonly used in extension cords and industrial wiring.
Let's look at a few popular NEMA plug and receptacle types:
NEMA 5-15P/R:
The most common household outlet
125V, 15A, grounded
Used for lamps, TVs, computers

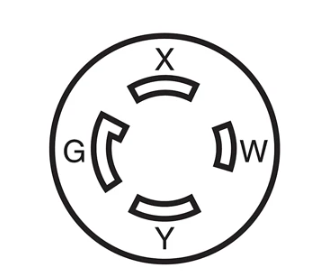

NEMA L14-30P/R:
125/250V, 30A, 4-wire
Used for generators and transfer switches

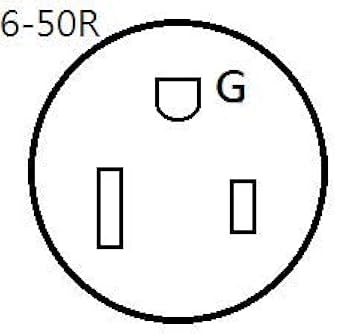

NEMA 6-50P/R:
250V, 50A
Common for welders and EV chargers

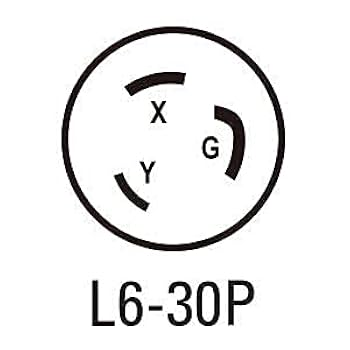

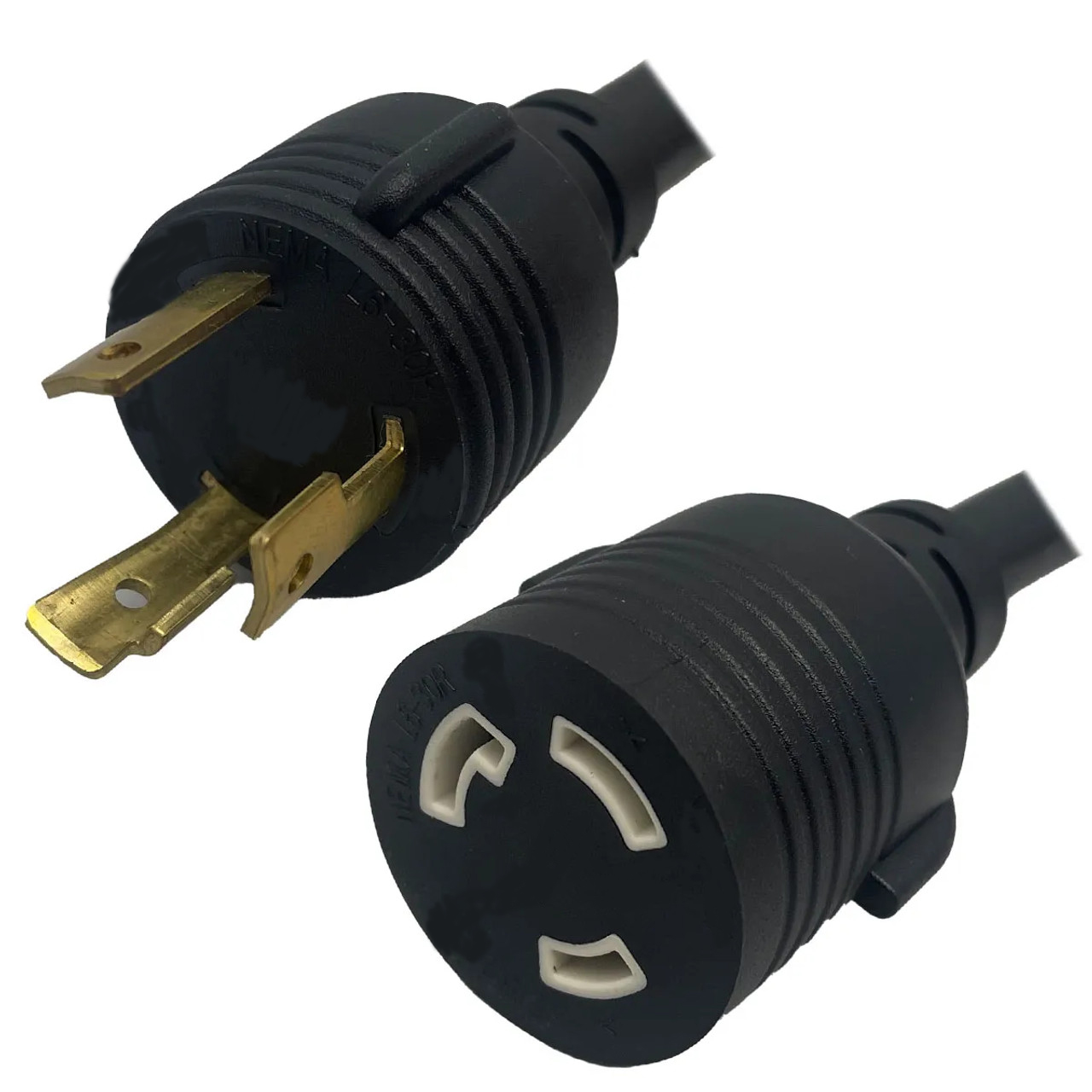

NEMA L6-30P/R:
250V, 30A, locking
Used in data centers and industrial motors
Each of these configurations is designed for specific load capacities and equipment, making it crucial to match the connector type to the application.
NEMA plug and receptacle types are tailored for different environments, from everyday use to specialized industrial needs.
NEMA 5-15 and 5-20:
Found in virtually all U.S. homes
Power standard appliances like microwaves, coffee makers, and laptops
Usually 125V, grounded
NEMA L5-30:
125V, 30A, locking
Often used in data centers, construction sites, and portable generators
NEMA L14-20 and L14-30:
125/250V, 3-pole, 4-wire
Popular for backup power systems and industrial panels
NEMA 6-15 and 6-20:
250V, 15A/20A
Used for HVAC systems, air compressors, and water heaters
NEMA 6-50:
250V, 50A
Heavy-duty plug used for welders, plasma cutters, and electric vehicle chargers
Choosing the wrong configuration can lead to electrical failure or safety hazards. NEMA connectors are designed to prevent incorrect mating, reduce shock risks, and meet UL (Underwriters Laboratories) certification requirements for grounding and performance.
Selecting a NEMA plug or receptacle isn't just about matching shapes—it involves understanding electrical and environmental factors.
Voltage & Amperage: Match the connector rating to your equipment's electrical requirements. Overloading a low-rated plug can lead to overheating and fires.
Number of Poles and Wires: Know whether your equipment requires single-phase or three-phase power and how many wires are needed for grounding/neutral.
Locking vs. Non-Locking: Locking connectors are safer for industrial use or outdoor environments where movement or vibration may occur.
Indoor vs. Outdoor Use: For wet or dusty environments, select connectors with weatherproof features and UL type ratings such as NEMA 3R or 4X.
Code Compliance: Use only UL-listed products to meet safety standards and avoid legal or insurance issues.
Home Generator Backup:
Use a NEMA L14-30 connector for safe power transfer between your generator and home electrical system.
EV Charging at Home:
A NEMA 14-50 outlet is typically used for Level 2 electric vehicle charging stations.
Portable Welding Machine:
A NEMA 6-50P plug and receptacle combo can handle the 250V, 50A load for heavy-duty use.
The NEMA classification system might seem technical, but it plays a vital role in making electrical installations safer, easier, and more consistent.
By using a NEMA classification chart, professionals and consumers alike can:
Match the right plug and receptacle every time
Prevent dangerous mismatches or overloads
Ensure compatibility across manufacturers and devices
Streamline planning and procurement
In an industry where electrical safety and precision are essential, NEMA provides the language and tools to ensure everything connects—both physically and electrically.
